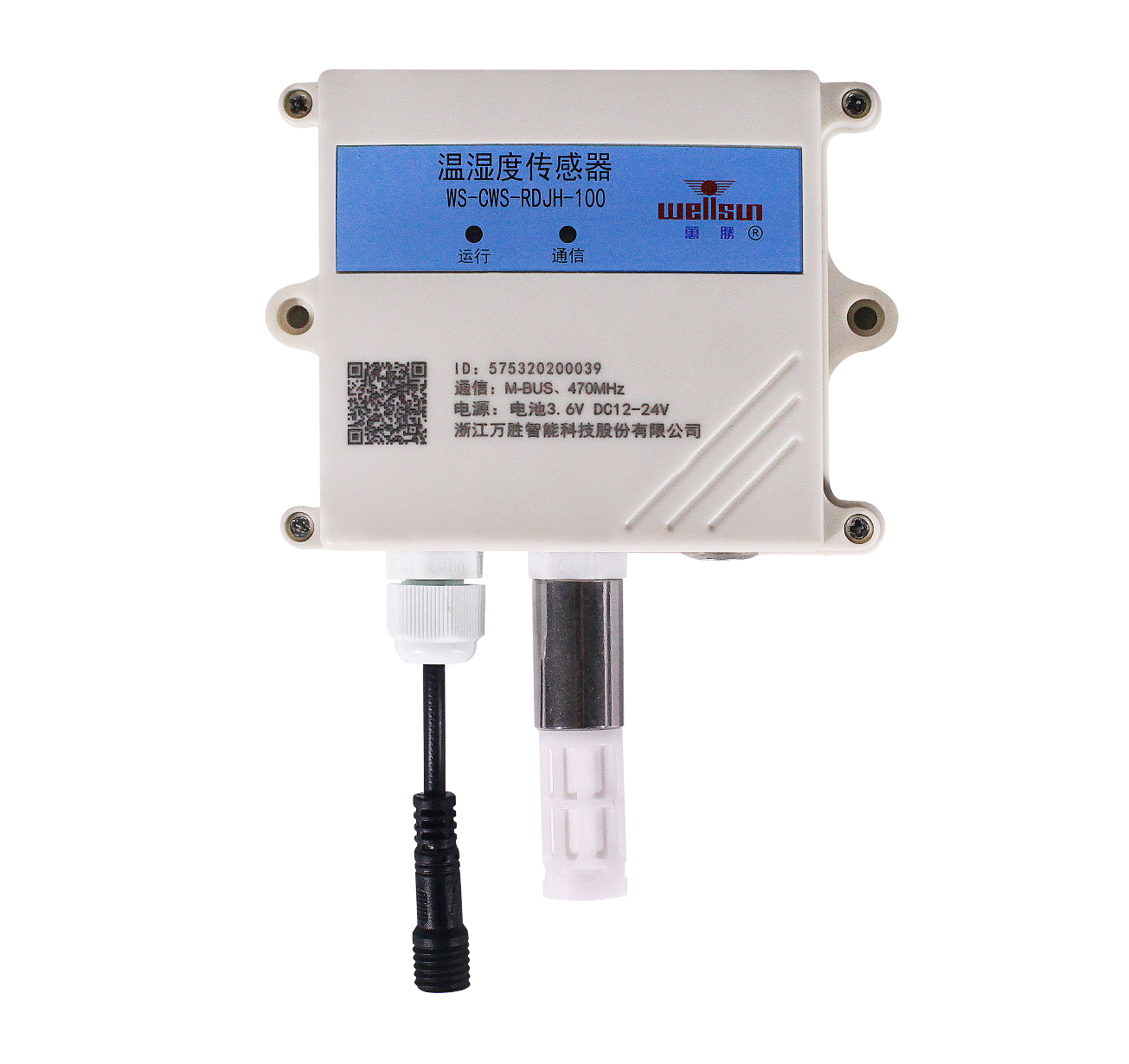

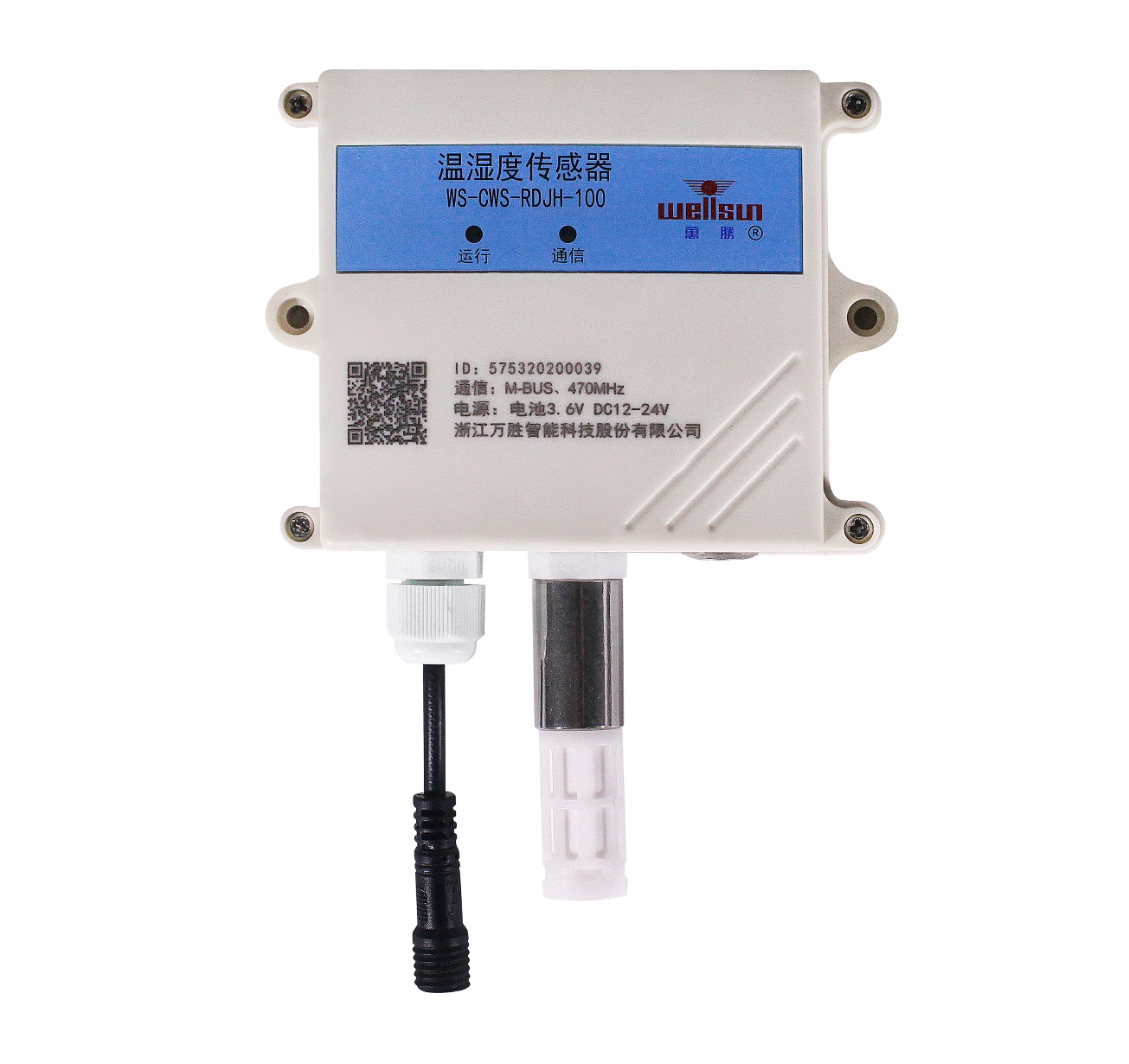

Temperature and humidity sensor

WS-CWS-RDJH-100

The WS-CWS-RDJH-100 temperature and humidity sensor is composed of a high-precision sensor and a wireless communication unit. It uses a low-power temperature and humidity acquisition chip and a wireless LoRa module to measure the temperature and humidity of the surrounding environment of the equipment. It is mainly used to monitor temperature and humidity changes in substations, power distribution rooms, UPS computer rooms and other scenes. When limits are exceeded, it can be linked to other equipment to achieve automatic control of temperature and humidity to ensure the safe operation of the equipment.

Enquire Now

Main functions and characteristics

1）Using a dedicated low-power temperature and humidity acquisition chip, it has a wide measurement range and high accuracy;

2）Low cost of use and maintenance;

3）Wireless upload, data visualization;

4）Wide range of applications.

Technical parameter

1. Shell

Protection level : IP68
2. Power supply

1) External power supply : DC12～24V
2) Battery power supply : 3.6V, battery capacity not less than 3500mAh
3) Static power consumption : ≤1W
3. Communication

1) Communication method : LoRa/RS485
2) Communication protocol : Comply with the "Micropower Wireless Network Communication Protocol for Internet of Things of Power Transmission and Transformation Equipment", "Data Specification for Sensors of Internet of Things of Power Transmission and Transformation Equipment", and Modbus protocol
3) Reporting cycle : The reporting cycle can be configured, with a default of 15 minutes
4. Measurement

1) Temperature measurement range : -45℃~85℃
2) Temperature measurement accuracy : ±0.5℃
3) Humidity measurement range : 0%RH~100%RH
4) Humidity measurement accuracy : ±2%RH
5. Work Environment

1) Operating temperature : -40℃~85℃
2) Operating humidity : ≤99%RH
3) Atmospheric pressure : 63kPa~106.0kPa

Size Description

110mm×120mmX50mm
