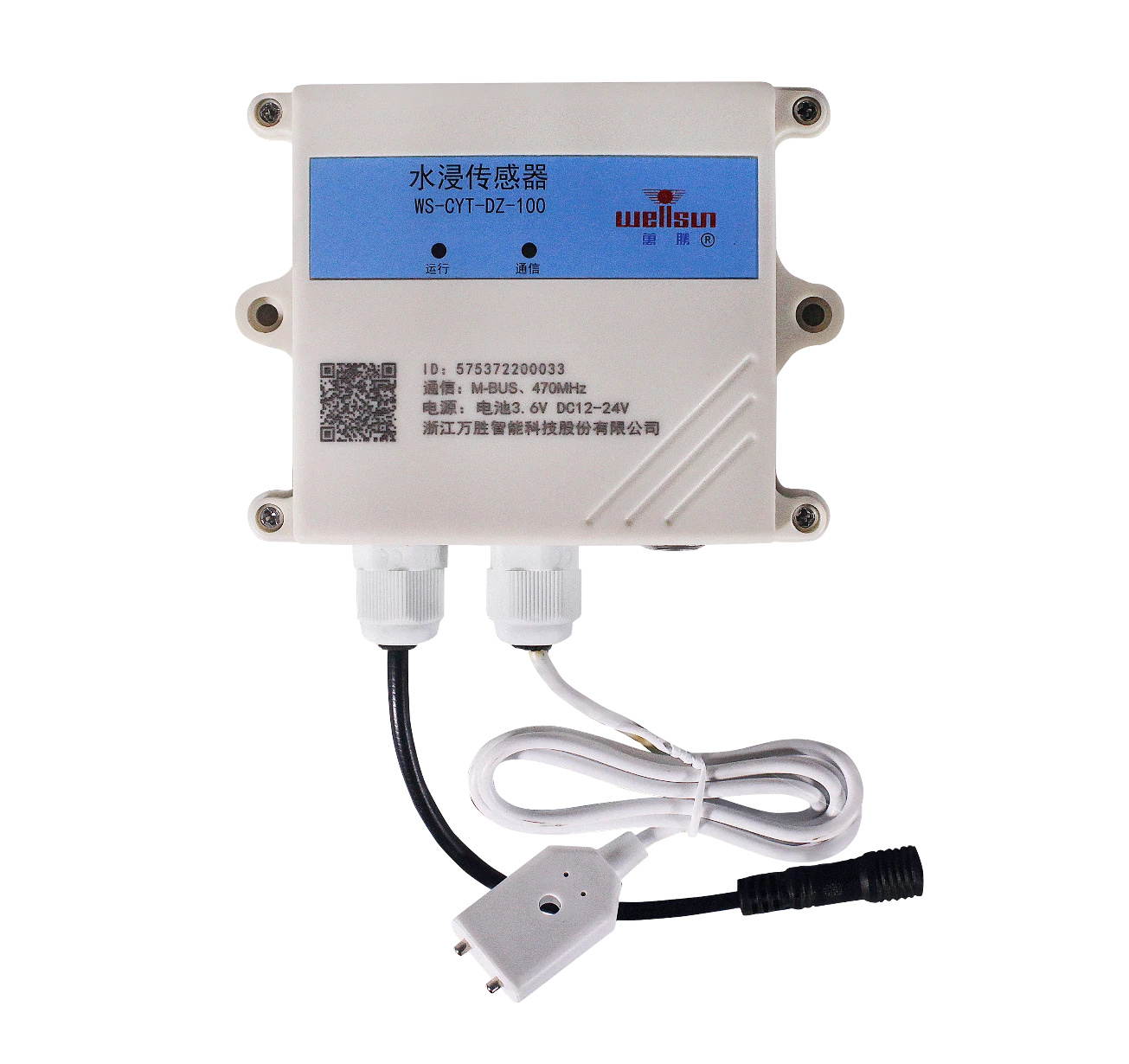

Water immersion sensor

WS-CYT-DZ-100

The WS-CYT-DZ-100 water immersion sensor is composed of a water immersion sensor collector and a wireless communication unit. It uses a low-power consumption high-performance microprocessor and a wireless LoRa module to realize water accumulation detection.When a flooding occurs, the alarm information is sent to the cloud platform through the gateway, and the cloud platform pushes it to the mobile APP and WEB end. It can be used in power transformation and distribution stations, switch station distribution boxes, base stations, computer rooms, warehouses, etc.

Enquire Now

Main functions and characteristics

1）Water immersion monitoring, timely alarm;

2）Easy to configure and low deployment cost;

3）High protection level, suitable for various scenarios;

4）Water immersion collector is corrosion-resistant and wear-resistant.

Technical parameter

1. Shell

Protection level : IP68
2. Power supply

1) External power supply : DC12～24V
2) Battery power supply : 3.6V, battery capacity not less than 3500mAh
3) Static power consumption : ≤1W
3. Communication

1) Communication method : LoRa/RS485
2) Communication protocol : Comply with the "Micropower Wireless Network Communication Protocol for Internet of Things of Power Transmission and Transformation Equipment", "Data Specification for Sensors of Internet of Things of Power Transmission and Transformation Equipment", and Modbus protocol
3) Reporting cycle : The reporting cycle can be configured, with a default of 15 minutes
4. Measurement

1) Detection cable length : Default 5m (other lengths available)
2) Sensitivity : With 4 gear settings, 0kQ~5kQ, 0kQ~100kQ, OMQ~1MQ, OMQ~5MQ
5. Work Environment

1) Operating temperature : -40℃~85℃
2) Operating humidity : ≤100%RH
3) Atmospheric pressure : 63kPa~106.0kPa

Size Description

110mmX120mmX50mm
