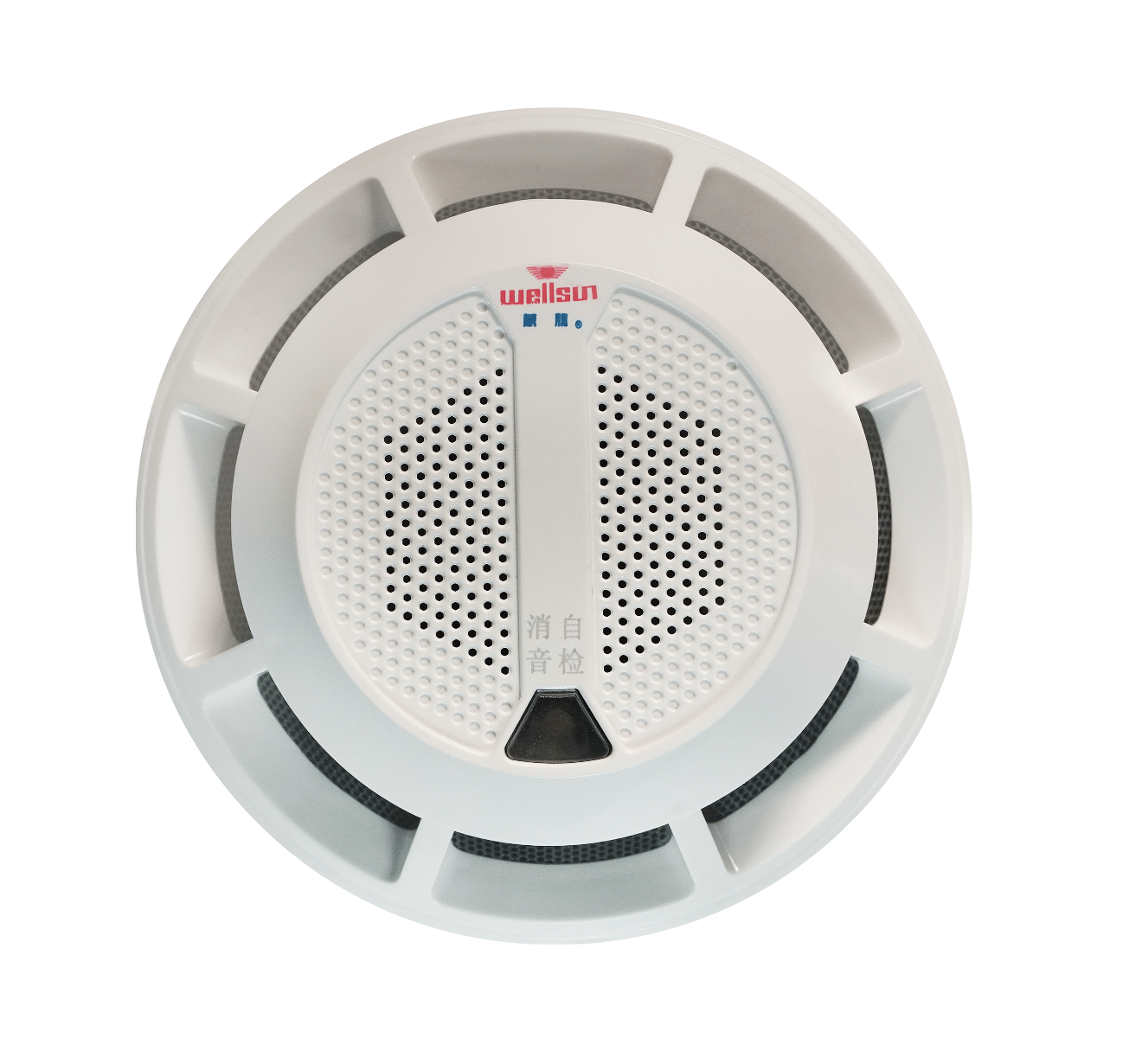

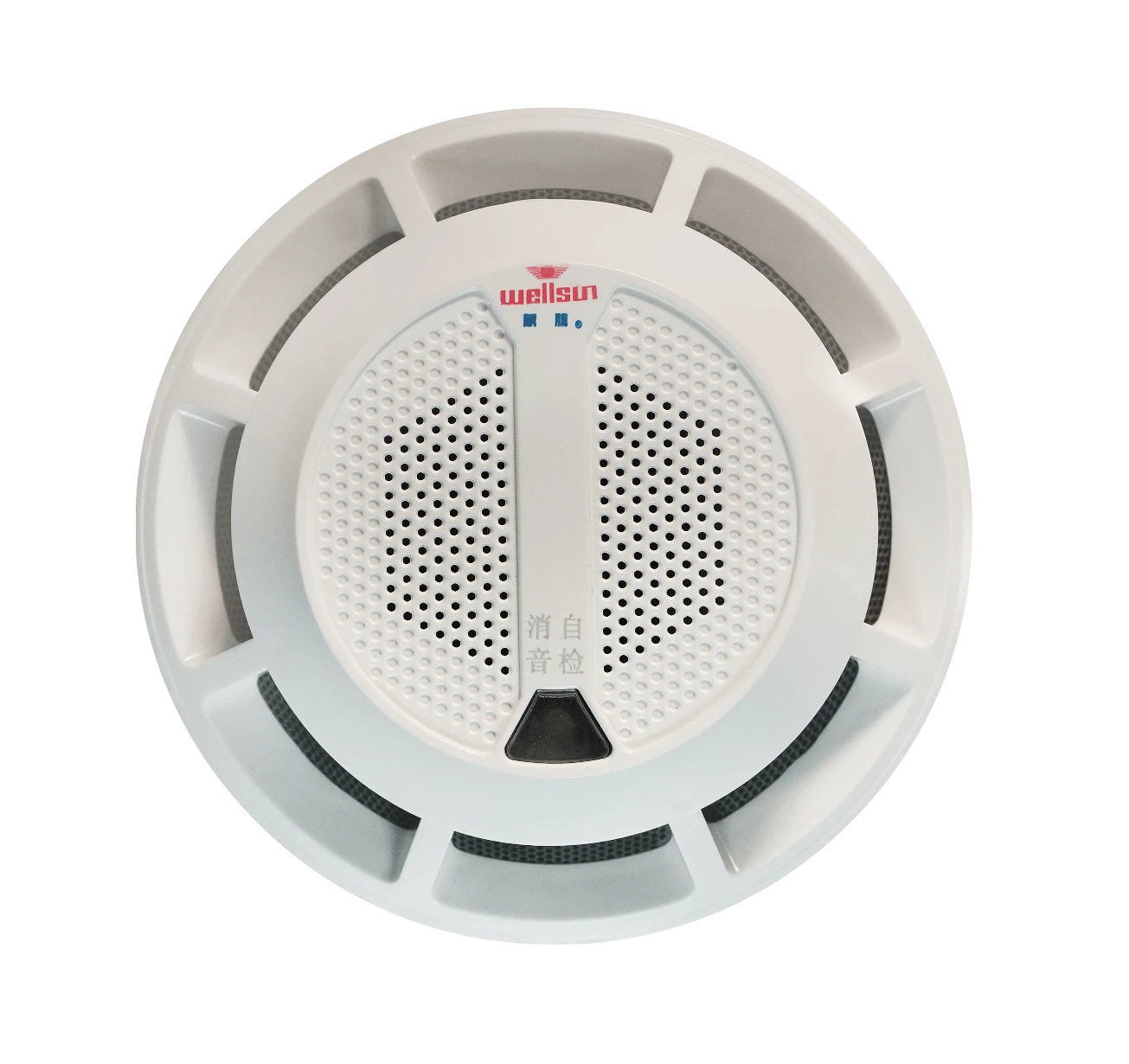

Smoke sensor

WS-CYW-GD-100

The WS-CYW-GD-100 smoke sensor is composed of an independent smoke detector and a wireless transmission module. It uses a low-power high-performance microprocessor and a wireless LoRa module to realize real-time monitoring of environmental smoke concentration. When an alarm occurs, the alarm information is sent to the cloud platform through the gateway, and the cloud platform pushes it to the mobile APP and WEB end. Mainly used in transformer and distribution stations, switch station distribution boxes, base stations, computer rooms, warehouses, etc.

Enquire Now

Main functions and characteristics

1) optical maze;

2) Special moisture-proof design;

3) Unique structural design, dust-proof, insect-proof, and resistant to external light interference;

4) Stable and reliable performance, simple installation, no debugging required.

Technical parameter

1. Shell

Protection level : IP67
2. Power supply

1) External power supply : DC12~24V
2) Battery power supply : 3V, battery capacity not less than 3400mAhu
3) Static power consumption : ＜1W
3. Communication

1) Communication method : M-BUS,LoRa
2) Communication protocol : Comply with the "Micropower Wireless Network Communication Protocol for Internet of Things of Power Transmission and Transformation Equipment", "Data Specification for Sensors of Internet of Things of Power Transmission and Transformation Equipment"
3) Reporting cycle : The reporting cycle can be configured, with a default of 15 minutes
4. Measurement

1) Response threshold : 0.4-0.5dBm
2) Alarm loudness : >80dB
3) Protection range : 25 square meters to 40 square meters
5. Work Environment

1) Operating temperature : -25℃~60℃
2) Operating humidity : 10%RH～90%RH
3) Atmospheric pressure : 63kPa～106.0kPau

Size Description

100mmx60mm
